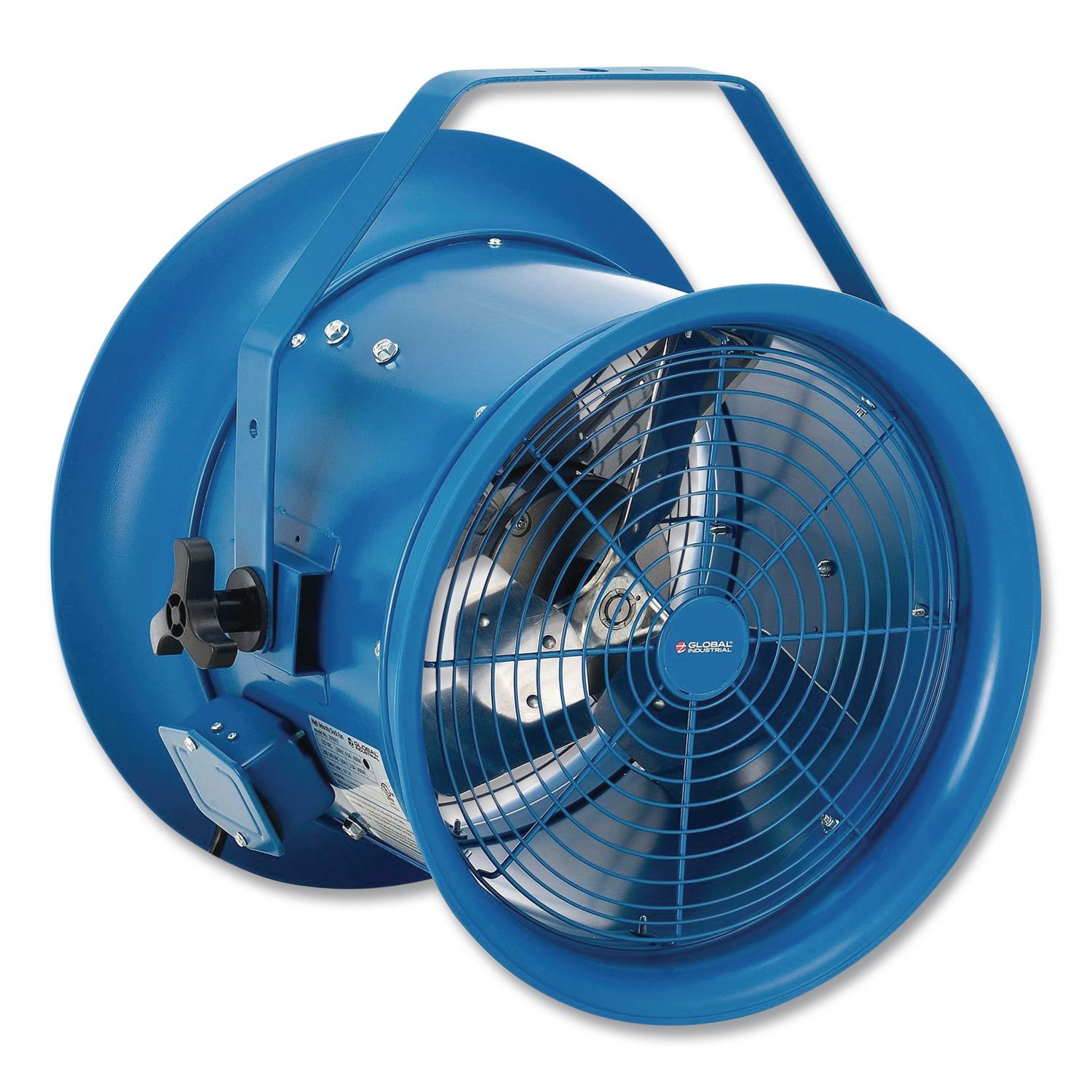

High Velocity Drum Fan with Yoke Mount, 14″, 1 Speed, Blue

(0)

$691.30

  • Free Shipping & Return: On order over $50
  • Low Price Guarantee: We offer competitive prices
code-5off
  • Value 5% discount
Copy Copied!
wikibook-sale
EXP:26 February 2028
  • Value 12.5% discount
  • Minimum order $200.00
Copy Copied!
SKU: 6856587
Availability: In stock

Description

Designed to project large amounts of air long distances, High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drive TEAO (Totally Enclosed Air Over) 1/3 hp motor with three galvanized aluminum fan blades. It comes with a yoke mount bracket that allows the unit to be used freestanding for portability or mounted on a wall or column for more permanent placement. Additional kits are available separately for more mounting options.

Specifications
Attribute Value
Global Product Type Industrial Floor Fans
Fan Head Size 14″
Fan Type Industrial
Oscillates No
Color(s) Blue
Height (Max) 22.43″
Voltage 115 V/208-240 V
Material(s) Metal/Polyethylene
Number of Speeds 1
Amps 4 A/2 A
Maximum Room Size 3,000 to 4,500 sq ft
Horsepower 1/3 hp
Housing Material High-Impact Polyethylene
Diameter 14″
Cord Length 12 ft
Blade Material Galvanized Aluminum
Blade Color Silver
Air Flow (CFM) 6,800 CFM
Number of Blades 3
Built-In Light No
Guard Color Black
Guard Material Steel
Housing Color Blue
Housing Finish Polyethylene
Motor Phase Single
Motor Size 1/3 hp
Motor Type Totally Enclosed Air Over
Noise Rating (dBA) 77.6 dBA
AC Voltage 115 to 120 V
Fan Width 14″
Switch Built-In On/Off Rocker
Style Industrial
Fan Speed (RPM) 1,720 RPM
Light Kit Included No
CFM/Watts 400 W
Maximum Operating Speed (RPM) 1,720 RPM
Width 21.19″
Depth 15.43″
Length 14″
Product Biodegradability Indicator N
Product Compostability Indicator N
Compliance Standards cUL
Compliance Standards UL Listed
Pre-Consumer Recycled Content Percent 0%
Post-Consumer Recycled Content Percent 0%
Total Recycled Content Percent 0%
